Program 02 / B.A.S.I.S.

Live biological signals, kept in context.

B.A.S.I.S. — BioAdaptive Signal Intelligence System — turns live physiological and environmental measurements into quality-aware state frames. Every reading stays connected to its source, clock, condition, signal quality, and evidence boundary.

live Muse capture same-clock HRV + EEG timing and quality guards recorded Holoscan routing
Current B.A.S.I.S. Capture Hub showing live Muse EEG, optical, motion, environment, and range lanes
Live Capture Hub / 2732 × 1788 Open full resolution ↗

Complete program arc

From one signal stream to a guarded multimodal state layer.

01 Where it began

Repeated HRV, RR, and heart-rate windows established a real physiological lane instead of a simulated health-data example.

02 What was built

Muse EEG, optical, motion, reference-quality, environment, range, and same-clock HRV inputs became one source-resolved state packet.

03 Evidence now

Repeated same-clock capture and recorded Holoscan routing show that named lanes can remain synchronized, quality guarded, and separately reviewable.

04 What comes next

Close direct live-device routing, strengthen waveform and artifact QA, then test the system with bounded research and medical-device partners.

What the system does

Capture is only the first step.

Capture Bring in real devices

Live and recorded sensor lanes enter through adapters that preserve device, unit, sample timing, and source identity.

Guard Carry quality with every window

Packet continuity, motion, contact, reference quality, missingness, and availability stay attached to the measurement.

Route Keep lanes separate

HRV, EEG, optical, motion, environment, and other inputs can move through named sinks without becoming one opaque score.

Review Return evidence, not just an answer

Researchers can inspect the source window, condition, quality limits, derived state, and next validation gate together.

Measured support

The current evidence is real, repeated, and deliberately bounded.

Same-clock matrix

15 valid HRV + Muse rows

Five repeated rows each for target, seated-calm control, and drift-control conditions used the same 60 / 120 / 60-second window structure.

Capture volume

Real packet and sample data

The public-safe aggregate includes 98,027 Muse packet rows, 9,750,684 decoded sample rows, and 3,980 HRV observations.

Strongest current read

HRV condition separation

HRV produced the strongest current condition read. EEG remains a measured candidate surface that still requires stricter artifact masks.

Runtime bridge

480 routed events, no observed gaps

The closed append-only gate reconciled expected, source, guard, and sink events across eight named lanes with zero observed drops or sequence gaps.

Live proof surface

The capture system is already operating.

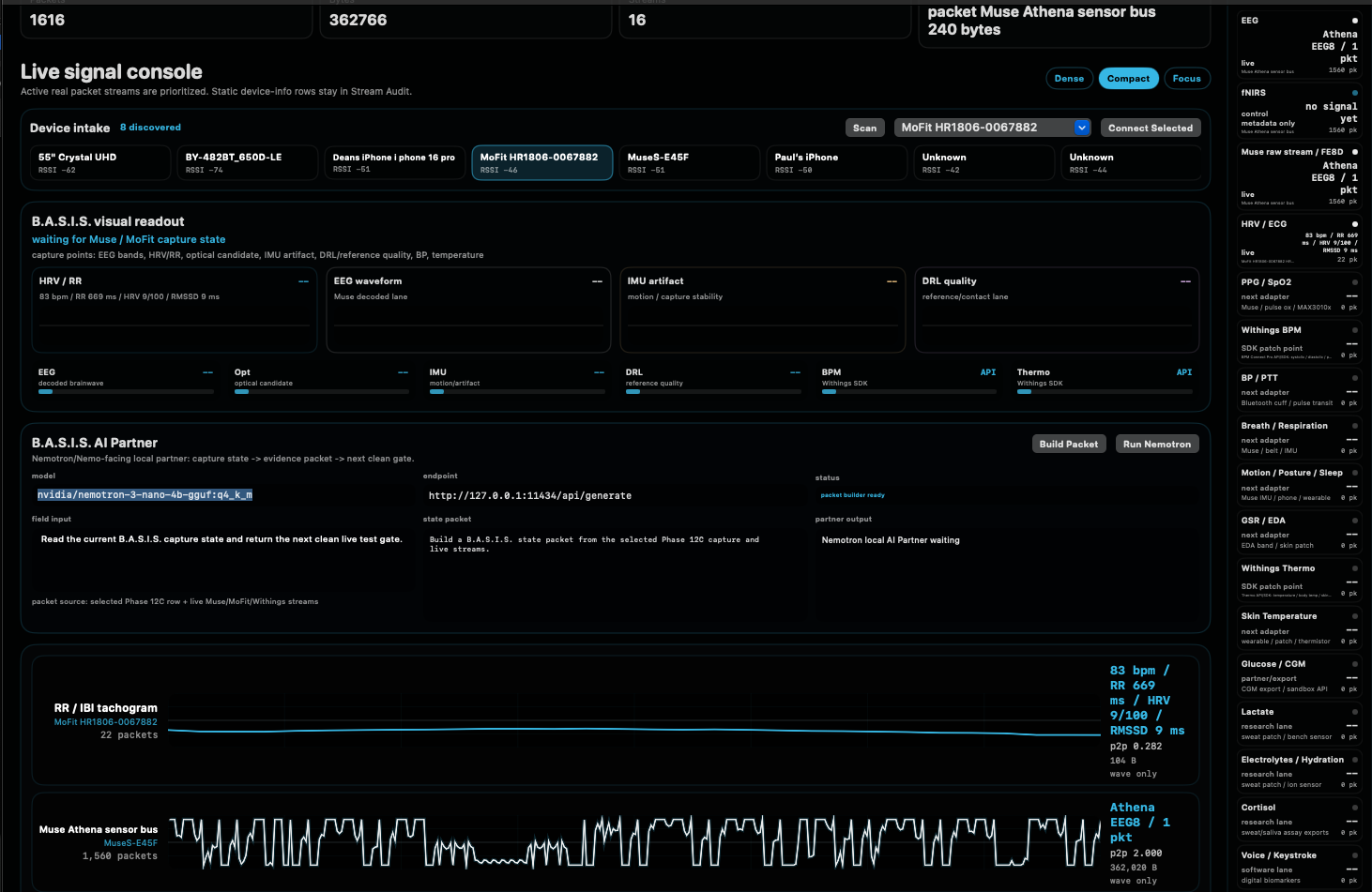

The live console brings Muse packets, MoFit HRV/RR, device intake, stream auditing, quality labels, and evidence-packet preparation into one B.A.S.I.S. workspace.

B.A.S.I.S. live signal console showing Muse Athena and MoFit HRV capture lanes

Runtime bridge

Recorded state frames can move through guarded streaming infrastructure.

The public-safe Holoscan gate routes recorded HRV and Muse-derived state frames through a source adapter, timing and quality guard, and lane-separated sinks. The result is engineering evidence for a streaming architecture—not a clinical performance claim.

B.A.S.I.S. Holoscan runtime bridge public-safe visual

Integration direction

Designed to connect without replacing the systems already in place.

Research and medical-device workflow

  • FHIR and SMART on FHIR are intended integration paths, not deployed certification claims
  • Named observations, device context, quality, and evidence packets remain reviewable
  • Local, edge, private-cloud, and customer-controlled deployment patterns remain available

Expandable signal surface

  • Current support centers on MoFit HRV/RR and Muse EEG, optical, and motion lanes
  • ECG, PPG/SpO2, blood pressure, respiration, sleep, EDA/GSR, CGM, and laboratory feeds are adapter directions
  • Each new device requires its own timing, quality, calibration, and validation gate

Evidence boundary

Current support: synchronized capture, state framing, and recorded runtime routing.

B.A.S.I.S. does not currently claim diagnosis, treatment, clinical validation, medical-device clearance, population-level performance, or live hospital deployment. Temperature remains an auxiliary continuation lane. Direct live Muse / MoFit routing into the guarded runtime is the next engineering gate.

Next gate

Run direct live-device source-on and source-off sessions, verify sample timing and quality masks, preserve lane receipts, and return only public-safe aggregate evidence.

Partner action

Review the B.A.S.I.S. demo path.

Medical-device, research, sports, rehabilitation, and clinical-workflow teams can review the current capture surface and define one bounded integration or validation lane.
